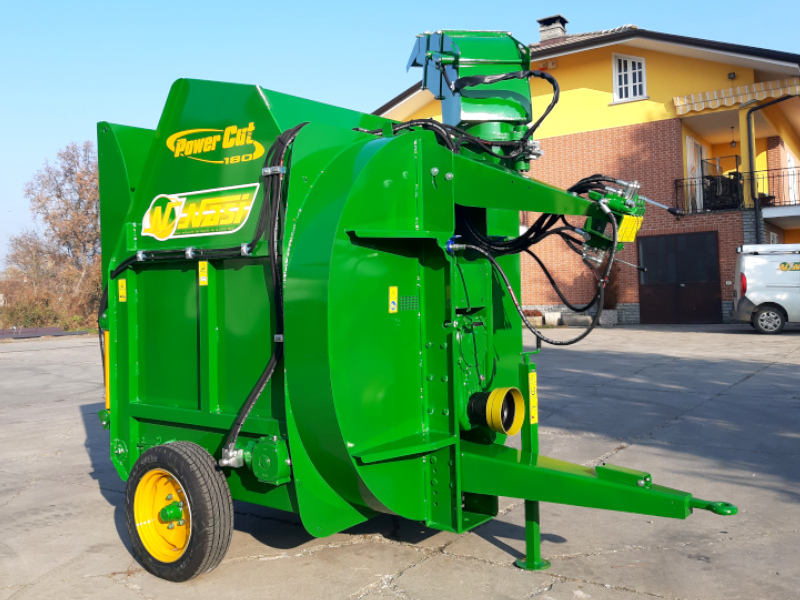

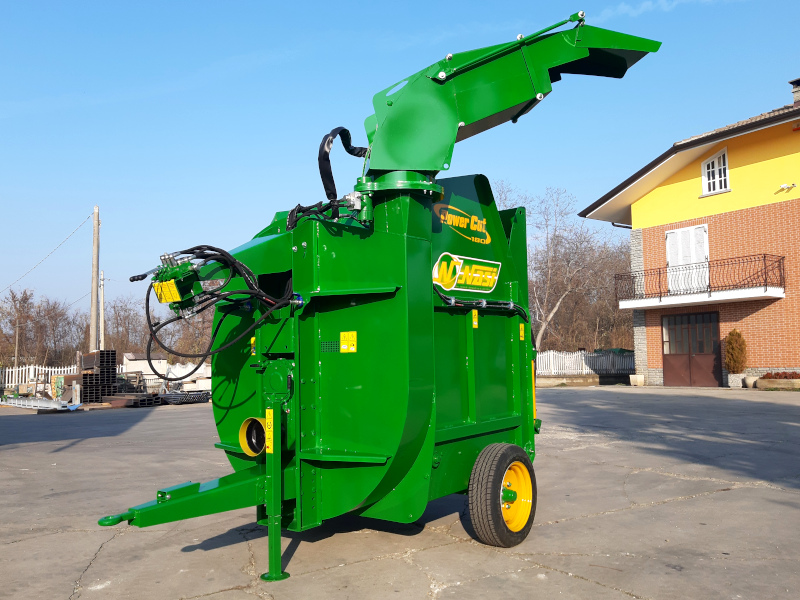

Power Cut 180

The over twenty – year experience of Nasi in the construction of straw cutters and spreaders for litter and feeding, the use of advanced technologies in the design stage, the greatest care and attention during the manufacturing of each single machine grant you:
Efficiency: the Nasi straw cutters and spreaders for litter and feeding allow you to cut cylindrical and prismatic bales of all commercial measures and to achieve a straw covering field from 0 to 18 meters, with the possibility, furthermore, to feed the mixer wagon with chopped product. And they request a minimum power of 50 HP for their functioning!
Functionality: thanks to the particular shape of the rotor, to the disposition and quantity of knives, the product which is cut by our straw cutters and spreaders, is frayed, so that it increases considerably its absorption capacity, with a consequent saving of material for the firm.
Safety and reliability: the greatest safety and reliability are granted by the great quality and ruggedness of all used components.

Details

The rotor, actuated by a two speeds reduction gear, is composed of seventy-four cutting fixed knives, and sixteen floating launching and crumbling knives placed on the external part, which allow to cut rapidly and perfectly any type of dry product

The change of speed by halving the number of turns, makes it easy to distribute hay and other forages in the trough

A well-builst and strong chain assures that the cylindrical and prismatic bales are supplied towards the rotor. The translation speed can be regulated by a valve located on the distributor. The good working condition of the chain is guaranteed by an anti-shock valve, that stops the movement when a foreign body is accidentaly introduced.

A fundamental item for the good functioning of the machine is the hydraulic roll that, turning at very high speed, favours the expulsion of the product from the launching fissure, avoiding that it lies down on the lower border of the slit, causing obstruction.

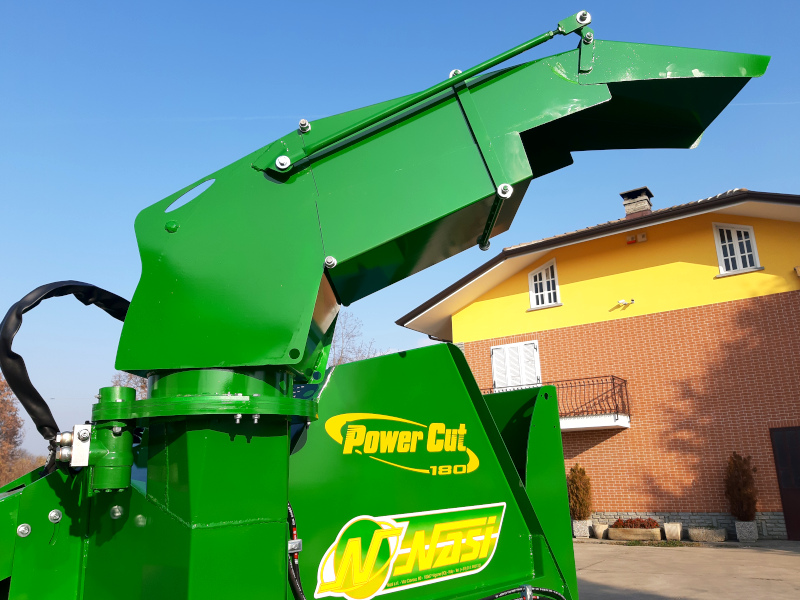

The 300° rotating turret with hydraulic adjust, facilitates the download of the product, as well as places that are usually difficult to reach.

The pipe used to span the lane, available on request, allows to carry out an excellent straw covering of litters and berths, without dirtying the space present between these ones and the machine.

The dust collector, equipped with a 12V electric pump, allows you to remove 80% of the dust from: stalks, straw, hay, etc …
Thanks to the flow regulator, the use of water is optimized, avoiding excessively moistening the product and bringing the autonomy of the system to two bales.

Length	mm	2800
Roadway	mm	1950
Height	mm	2400
Height with revolving turret	mm	2800
Tare	kg	1100
Power required	HP	50
