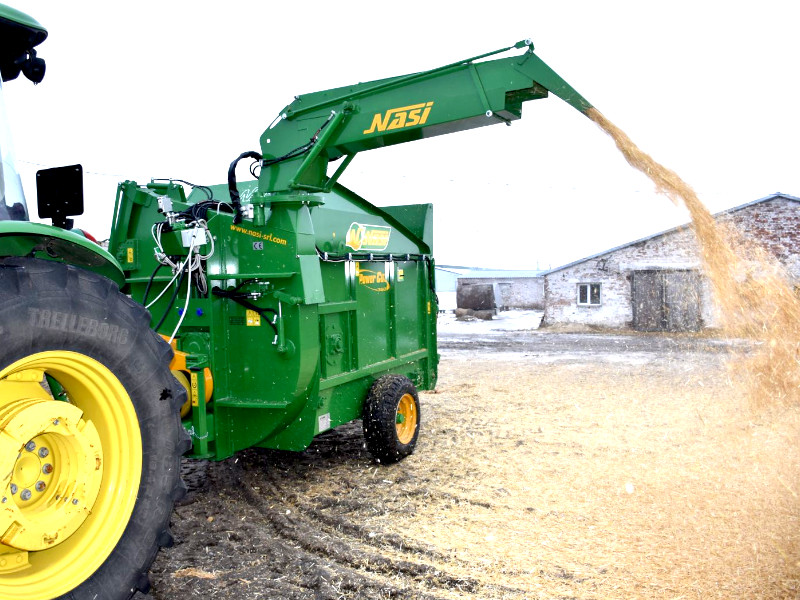

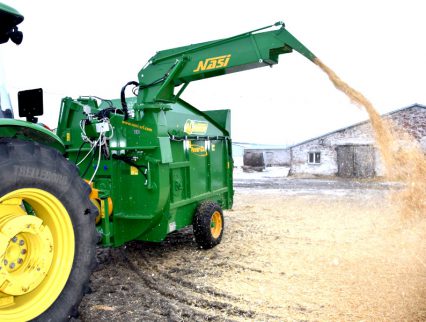

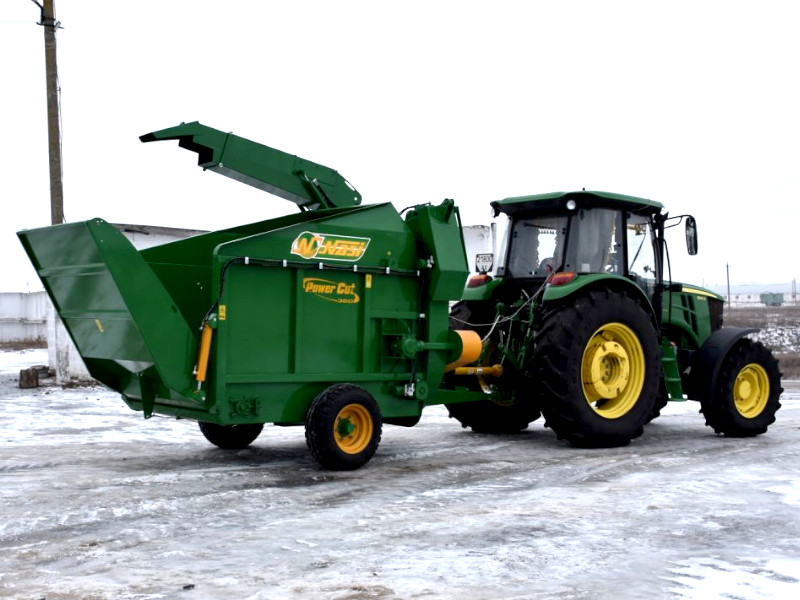

Power Cut 360

The Power cut 360, the core of our straw cutters and spreaders machines, operates with two speed reduction gear; this allows the turbine to launch the straw from 0 to 18 meters with an homogeneous straw cover, or to halve the rotation favouring the product distribution in the fodder-trough and the litter. The roll has seventy-two knives placed in strategic points in order to guarantee a perfect cut of any dry product, bandaged bales, rice straw, and so on. It is even possible to add a counter-knives set (optional), that can produce pieces of approx. 5 centimetres long.

Details

The roll has seventy-two knives placed in strategic points in order to guarantee a perfect cut of any dry product, bandaged bales, rice straw, and so on. It is even possible to add a counter-knives set (optional), that can produce pieces of approx. 5 centimetres long.

The change of speed, halving the number of turns, makes it easy to distribute hay and other forages in the trough.

A well-builst and strong chain assures that the cylindrical and prismatic bales are supplied towards the roll. The translation speed can be regulated by a valve located on the distributor. The good working condition of the chain is guaranteed by an anti-shock valve, that stops the movement when a foreign body is accidentaly introduced.

A fundamental item for the good functioning of the machine is the hydraulic roll that, turning at very high speed, favours the expulsion of the product from the launching fissure, avoiding that it lies down on the lower border of the slit, causing obstruction.

The 300° rotating turret with hydraulic adjust, facilitates the download of the product, as well as places that are usually difficult to reach.

The pipe used to span the lane, available on request, allows to carry out an excellent straw covering of litters and berths, without dirtying the space present between these ones and the machine.

An efficient counter knife allows you to cut all dry products to an average length of 5cm.

The dust collector, equipped with a 12V electric pump, allows you to remove 80% of the dust from: stalks, straw, hay, etc …
Thanks to the flow regulator, the use of water is optimized, avoiding excessively moistening the product and bringing the autonomy of the system to two bales.

Length	mm	4340
Roadway	mm	1950
Height	mm	2400
Height with revolving turret	mm	2800
Tare	kg	2100
Power required	HP	50
